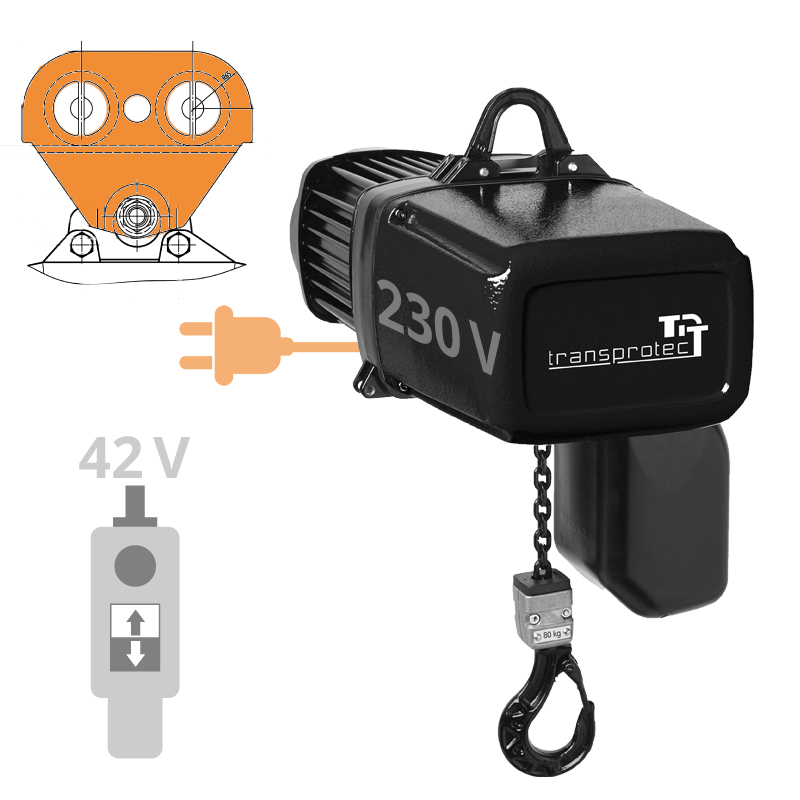

This type of electric chain hoist is equipped as standard with a 42 V contactor control, a 3 m stroke and a metal housing. This chain hoist can be supplied with either electric or roller trolley. There is also a choice between eye and hook suspension. If you require more than 3 m of chain or a special electric chain hoist, e.g. for hazardous areas or stage technology, our specialist advisors will be happy to provide you with a personal consultation on +49 40 / 87 08 59 78 0 or by email at info@transprotec.de.
We offer periodic inspections (UVV) for your electric chain hoist.
We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600
Typ | Tragfähigkeit (kg) | Hubgeschwindigkeit | Strangzahl | Kettengröße | Motorleistung | Motordaten | Gewicht | Flaschbreiten (Größe) | Rollfahrwerk |
|
|
|
|
|
|
|
|
| |
| T-ECH 250 / 1N1PhM | 250 | 8 | 1 | 3,75 x 10,75 | 0,55 | 4,7 A (1 x 230 V) | 24 | 50 - 99 | GHF500K |
| T-ECH 250 / 1NL1PhM | 250 | 4 | 1 | 3,75 x 10,75 | 0,55 | 4,7 A (1 x 230 V) | 24 | 50 - 99 | GHF500K |
| T-ECH 250 / 2N1PhM | 500 | 4 | 2 | 3,75 x 10,75 | 0,55 | 4,7 A (1 x 230 V) | 25 | 50 - 99 | GHF500K |
| T-ECH 250 / 2NL1PhM | 500 | 2 | 2 | 3,75 x 10,75 | 0,55 | 4,7 A (1 x 230 V) | 25 | 50 - 99 | GHF500K |
| T-ECH 500 / 1N1PhM | 250 | 8 | 1 | 5,25 x 15 | 0,55 | 4,7 A (1 x 230 V) | 26 | 50 - 99 | EHF50 |
| T-ECH 500 / 1NL1PhM | 500 | 4 | 1 | 5,25 x 15 | 0,55 | 4,7 A (1 x 230 V) | 26 | 50 - 99 | EHF50 |
| T-ECH 500 / 2N1PhM | 500 | 4 | 2 | 5,25 x 15 | 0,55 | 4,7 A (1 x 230 V) | 28 | 50 - 99 | EHF50 |
| T-ECH 500 / 2NL1PhM | 1.000 | 2 | 2 | 5,25 x 15 | 0,55 | 4,7 A (1 x 230 V) | 28 | 50 - 99 | EHF50 |
Tragfähigkeit: 1.000 kg
Aufhängung / Fahrwerk: Rollfahrwerk
Spannung: 230 Volt
Steuerung: Schützsteuerung
