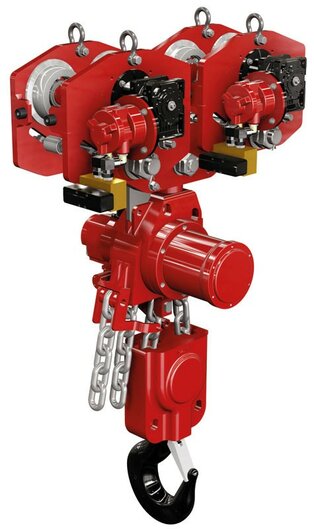

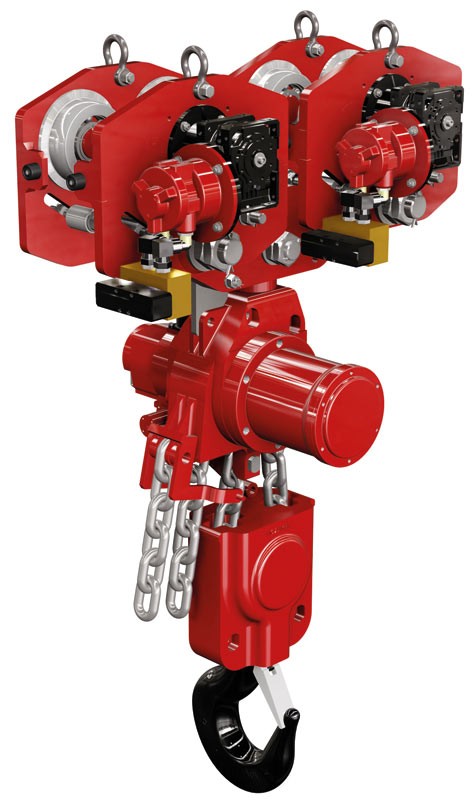

Pneumatic chain hoists & trolleys TCR, TNC

0,25 t bis 50 t Tragfähigkeit

  • TOKU vane motor

  • Robust planetary gearbox

  • Built-in disk brake

  • Choice of controls

  • Limit switch for upper and lower load hook position

  • Lightweight aluminum housing

  • Internal noise reduction below 80 dB(A)

  • Rotating load hook with hook jaw safety device

  • Load chain of European manufacture in accordance with EN818-7

  • Trolleys for different flange profiles (parallel, conical)

  • Integrated overrun and fall protection

  • Highly efficient, self-braking worm gear

  • Sealed wheel bearings with permanent lubrication
01-druckluftkettenzug-laufkatze-3-15tN92oO8komqjNX
Request now!
05-druckluftkettenzug-laufkatze-3-15tSPdqe6ysLmHMb
01-druckluftkettenzug-laufkatze-25-50tTlq3qMsH50QSt
02-druckluftkettenzug-laufkatze-10-25tfYcYZViLZ7wov

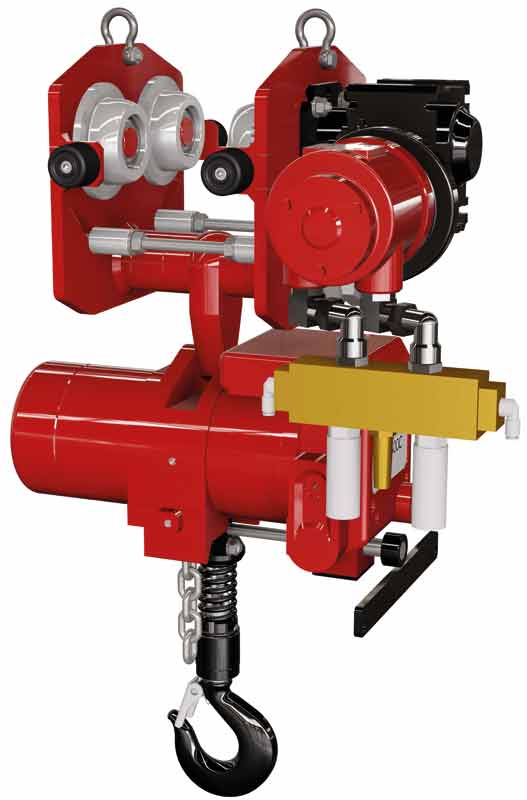

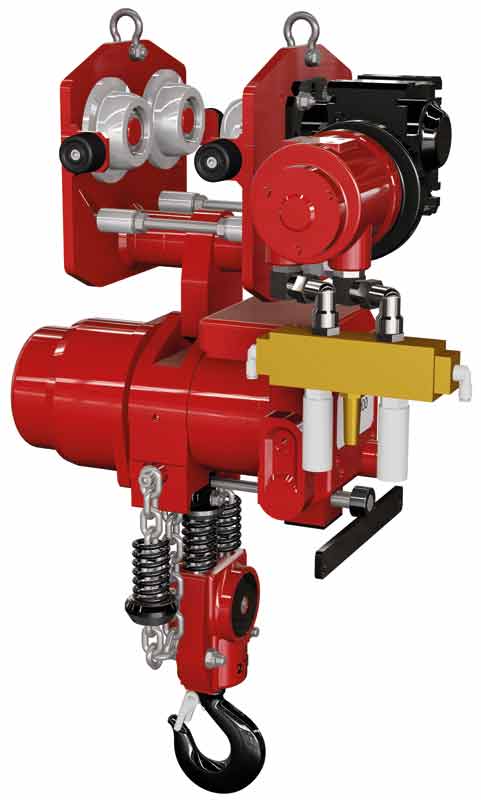

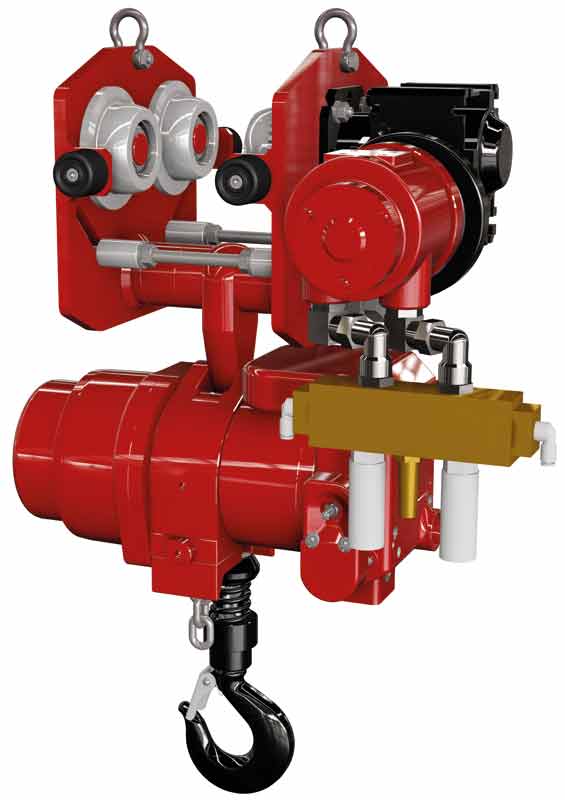

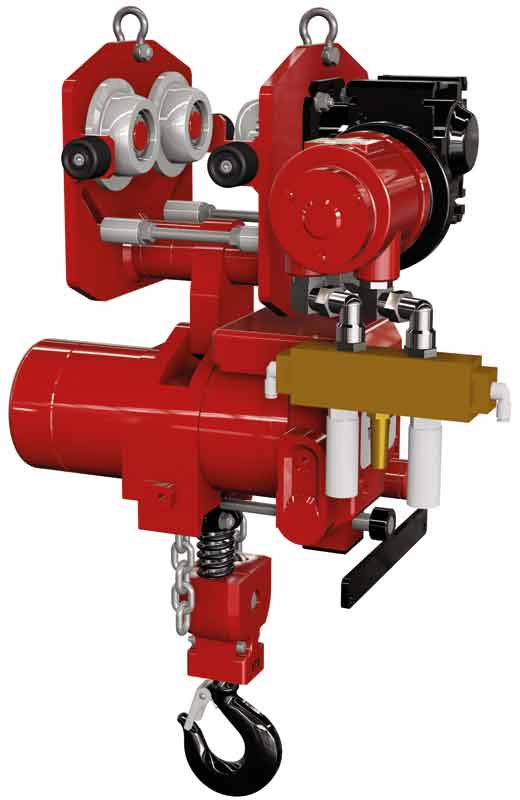

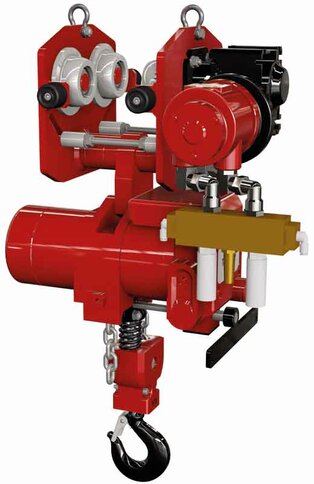

Pneumatic chain hoists & trolleys 0.25 t - 2 t

Compressed air chain hoist

TCR-500-AT2S

TCR-1000/2-AT2S

TCR-1000-AT2S

TCR-2000/2-AT2S

Load capacity (t)

0,25 / 0,5

1

1

2

Lifting speed at full load (m/min)

12 / 10,5

5,3

6

3

Lifting speed without load (m/min)

16

9,5

11,3

5,7

Air consumption at full load (l/sec)

25

25

25

25

Number of chain strands

1

2

1

2

Air pressure (bar)

6

6

6

6

Air connection

1/2“ BSPT

1/2“ BSPT

1/2“ BSPT

1/2“ BSPT

Hose Ø (DIN 2999) (mm)

13

13

13

13

Weight with standard stroke (kg)

59

62

61

67

Chain dimension (mm)

6,3 x 19,1

6,3 x 19,1

7,1 x 21

7,1 x 21

Weight per meter of additional stroke (kg/m)

0,8

1,6

1,1

2,2

Trolley

AT2S

Flange: Width 1 (mm)

55 - 140

Flange: Width 2 (mm)

140 - 220

Flange: Width 3 (mm)

220 - 300

Standard temperature range (°C)

-10 - +50

Extended temperature range (°C)

-20 - +70

Standard travel speed (m/min)

9

ATEX travel speed (m/min)

6

Optional travel speed (m/min)

14

Wheel material

Stahl

ATEX wheel material

Bronze

Minimum bending radius (m)

1,5

Number of wheels

4

Number of driven wheels

2

Max. Air consumption (l/sec)

25

Inner hose Ø

1/2“

01-druckluftkettenzug-laufkatze-025-2tRT2MALwk2YNkN
02-druckluftkettenzug-laufkatze-3-15tXoj4D9bzef2Y4
03-druckluftkettenzug-laufkatze-10-25ttdYMBVVrKpEgX

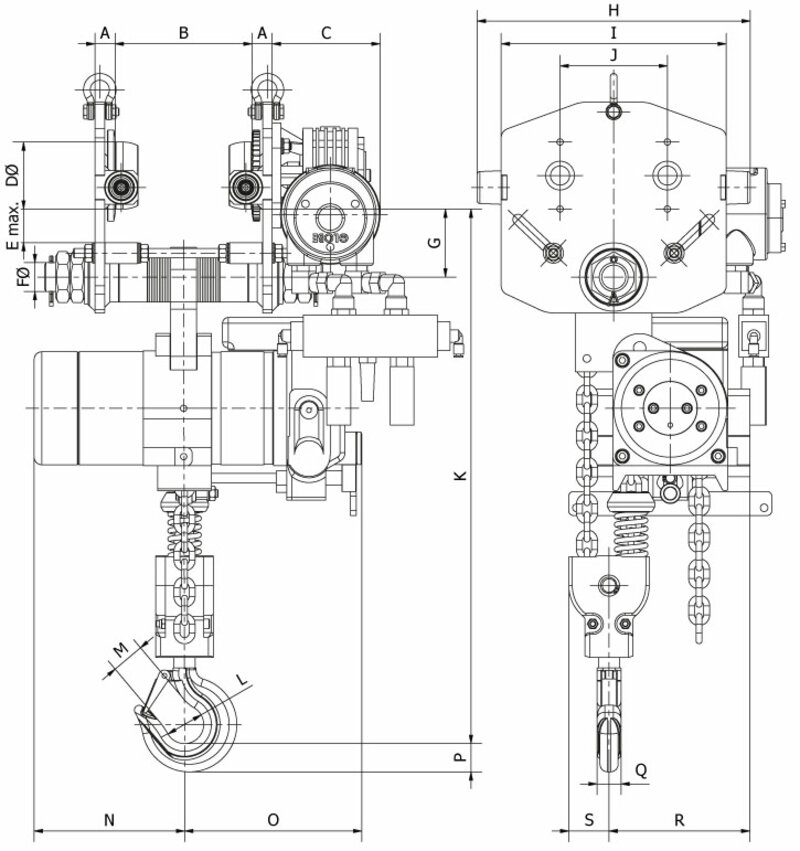

Dimensions of pneumatic chain hoists & trolleys 0.25 t - 2 t

druckluftkettenzug-laufkatze-025-2t-zg
DimensionsTCR-500-AT2STCR-1000/2-AT2STCR-1000-AT2STCR-2000/2-AT2S
A21212121
BTBCTBCTBCTBC
C135135135135
D Ø70707070
E35353535
F Ø35353535
G71717171
H285285285285
I235235235235
J112112112112
K525560525645
L Ø40404045
M29292929
N159156156155
O186186186185
P29,529,529,537
Q25252530
R113147116140
S20422355

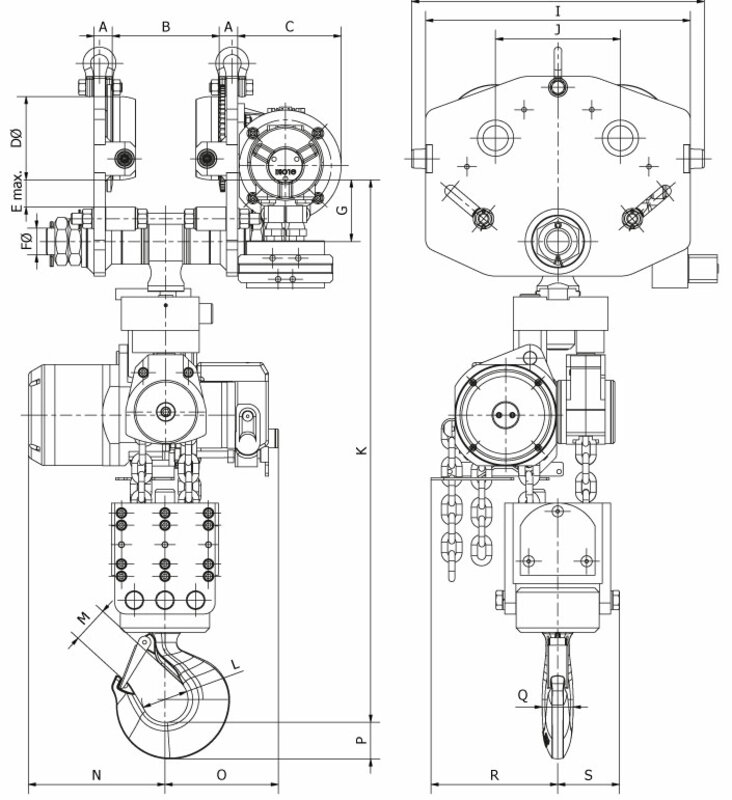

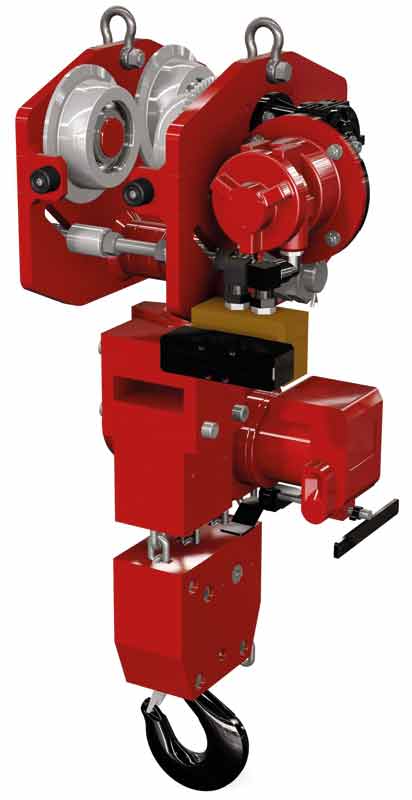

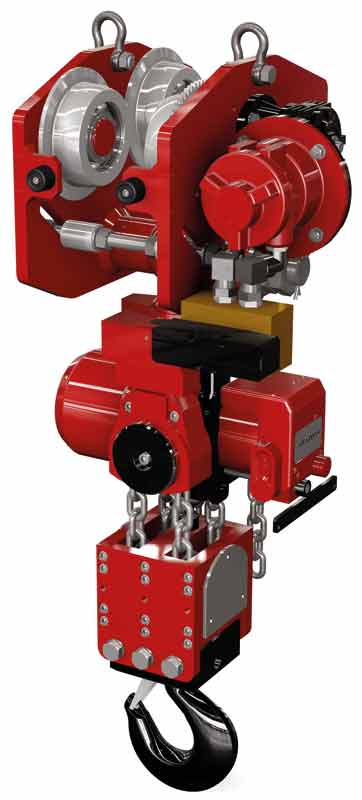

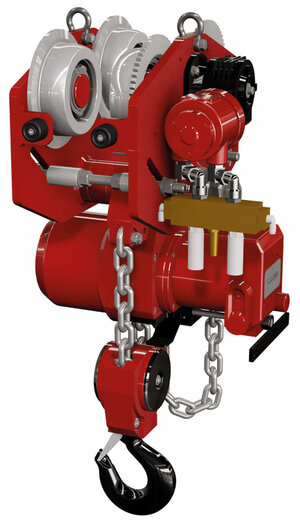

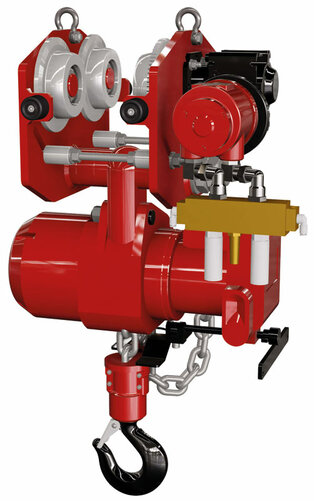

Pneumatic chain hoists & trolleys 3 t - 15

Compressed air chain hoist

TCR-3000-AT3S

TCR-6000/2-AT6S

TCR-9000/3-AT10S

TCR-12000/4-AT10S

TCR-15000/5-AT15S

Load capacity (t)

3

6

9

12

15

Lifting speed at full load (m/min)

2,8

1,4

0,9

0,6

0,5

Lifting speed without load (m/min)

5,7

2,9

1,9

1,4

1,1

Air consumption at full load (l/sec)

33

33

33

33

33

Number of chain strands

1

2

3

4

5

Air pressure (bar)

6

6

6

6

6

Air connection

3/4“ BSPT

3/4“ BSPT

3/4“ BSPT

3/4“ BSPT

3/4“ BSPT

Hose Ø (mm)

3/4“

3/4“

3/4“

3/4“

3/4“

Weight with standard stroke (kg)

110

153

290

310

360

Chain dimension (mm)

11,2 x 34

11,2 x 34

11,2 x 34

11,2 x 34

11,2 x 34

Weight per meter of additional stroke (kg/m)

2,7

5,4

8,1

10,8

13,5

LaufkatzeAT3SAT6SAT10SAT10SAT15S
Flansch: Breite 1 (mm)80 -16090 - 160110 - 180110 - 180110 - 180
Flansch: Breite 2 (mm)160 - 230160 - 230180 - 240180 - 240180 - 240
Flansch: Breite 3 (mm)260 - 300230 - 300240 - 300240 - 300240 - 300
Standardtemperaturbereich (°C)-10 - +50-10 - +50-10 - +50-10 - +50-10 - +50
Erweiterter Temperaturbereich (°C)-20 - +70-20 - +70-20 - +70-20 - +70-20 - +70
Fahrgeschwindigkeit (m/min)6*6*886
RadmaterialStahlStahlStahlStahlStahl
ATEX RadmaterialBronzeBronzeBronzeBronzeBronze
Minimaler Biegeradius (m)2,52,52,533
Anzahl der Räder44444
Anzahl der angetriebenen Räder22222
Max. Luftverbrauch (l/sec)2525404040
Schlauchinnen-Ø3/4“3/4“3/4“3/4“1“
02-druckluftkettenzug-laufkatze-025-2tQm2fFaaccNQwi
01-druckluftkettenzug-laufkatze-10-25tRnhcwHM7IZcBk
02-druckluftkettenzug-laufkatze-25-50tut20FTmlu9Taf

Pneumatic chain hoists & trolleys 3 t - 15 t

druckluftkettenzug-laufkatze-3-15t-zg
DimensionsTCR-3000-AT3STCR-6000/2-AT6STCR-9000/3-AT10STCR-12000/4-AT10STCR-15000/5-AT15S
A2428333340
BTBCTBCTBCTBCTBC
C135115185185215
D Ø100150150150180
E3845505050
F Ø4050555560
G85102111111115
H390515525525590
I340465475475540
J160224224224250
K625765935985940
L Ø5065758484
M3442535858
N200200205245240
O240250245205205
P4549606767
Q3542435252
R135180270230295
S3172120110125

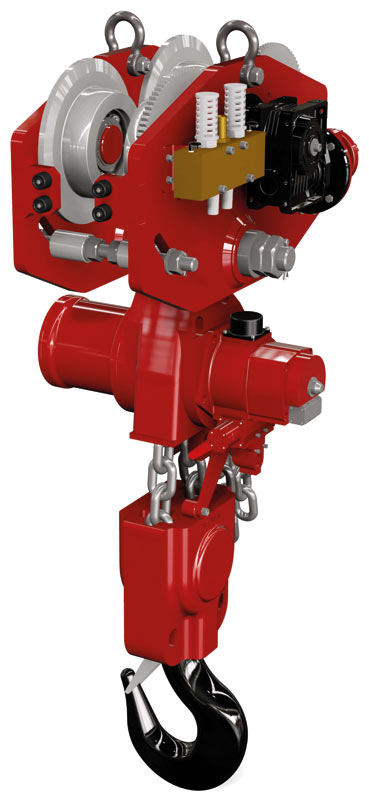

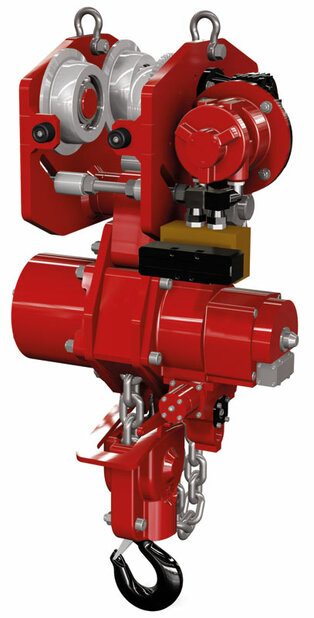

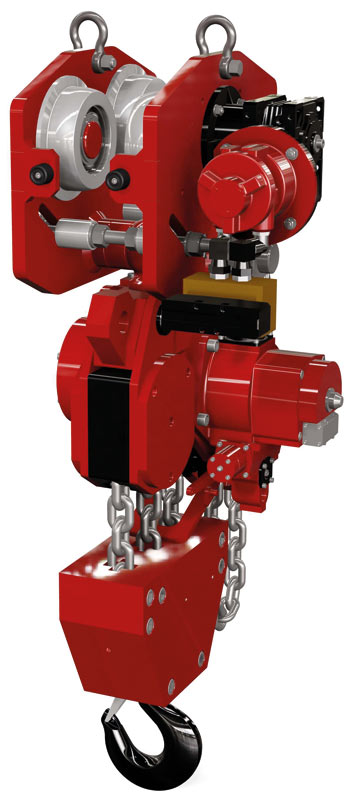

Pneumatic chain hoists & trolleys 10 t - 25 t load capacity

Compressed air chain hoist

TNC-10TW- AT105

TNC-15TW/3-AT15S

TNC-20TW/4-AT25S

TNC-25TW- AT25S

Load capacity (t)

10

15

20

25

Lifting speed at full load (m/min)

1,5

1

0,85

0,6

Lifting speed without load (m/min)

2,5

1,6

1,25

1,0

Hubgeschwindigkeit ohne Last (m/min)

90

90

90

90

Number of chain strands

2

3

4

2

Air pressure (bar)

6

6

6

6

Air connection

1“ BSPT

1“ BSPT

1“ BSPT

1“ BSPT

Hose Ø (DIN 2999) (mm)

1“

1“

1“

1“

Weight with standard stroke (kg)

350

470

670

880

Chain dimension (mm)

16 x 45

16 x 45

16 x 45

22 x 66

Weight per meter of additional stroke (kg/m)

11,4

17,1

22,8

21,8



TrolleyAT10SAT15SAT25SAT225S
Flange: Width 1 (mm)110 - 180110 - 180130 - 200130 - 200
Flange: Width 2 (mm)180 - 240180 - 240200 - 260200 - 260
Flange: Width 3 (mm)240 - 300240 - 300260 - 320260 - 320
Standard temperature range (°C)-10 - +50-10 - +50-10 - +50-10 - +50
Extended temperature range (°C)-20 - +70-20 - +70-20 - +70-20 - +70
Travel speed (m/min)8644
Wheel materialStahlStahlStahlStahl
ATEX wheel materialBronzeBronzeBronzeBronze
Minimum bending radius (m)2,5333
Number of wheels4444
Number of driven wheels2322
Max. Air consumption (l/sec)40404040
Inner hose Ø1“1“1“1“
03-druckluftkettenzug-laufkatze-3-15t9DfqUbxd6r8Vn
03-druckluftkettenzug-laufkatze-025-2tP4VNnhJNNLJHr
04-druckluftkettenzug-laufkatze-025-2tBTadD1gQ4FRPN

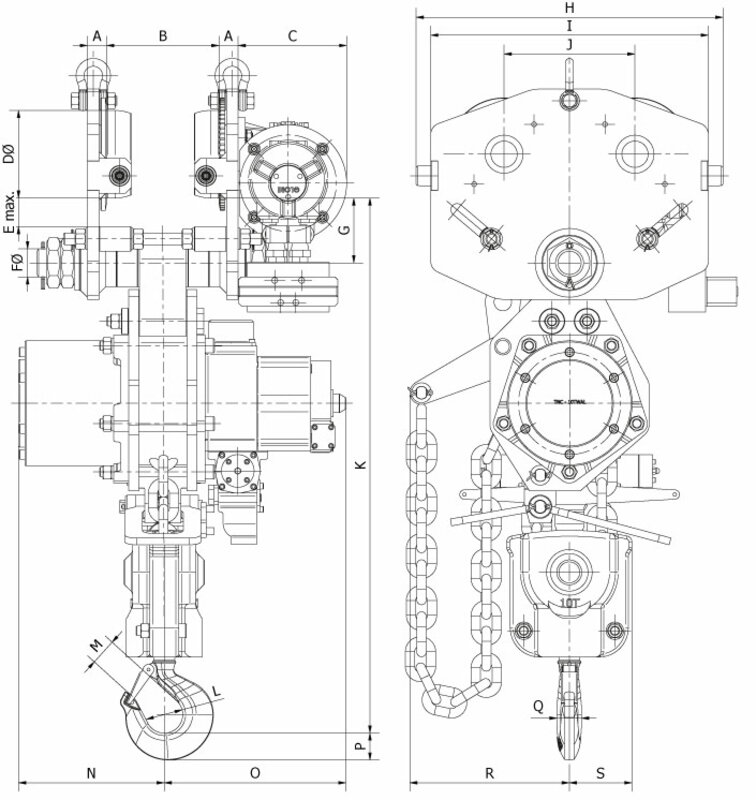

Dimensions of pneumatic chain hoists & trolleys 10 t - 25 t load capacity

druckluftkettenzug-laufkatze-10-25t-zg

Dimensions

TNC-10TW- AT105

TNC-15TW/3- AT15S

TNC-20TW/4- AT25S

TNC-25TW- AT25S

A

33

40

53

53

B

TBC

TBC

TBC

TBC

C

185

215

215

215

D Ø

150

180

240

240

E

50

50

55

55

F Ø

55

60

80

80

G

111

115

135

135

H

525

590

910

910

I

475

540

860

860

J

224

250

400

401

K

975

1175

1265

1480

L Ø

60

84

110

125

M

40

58

78

80

N

250

250

245

365

O

310

310

315

345

P

62

67

80

103

Q

55

52

64

82

R

255

465

535

315

S

107

197

265

165

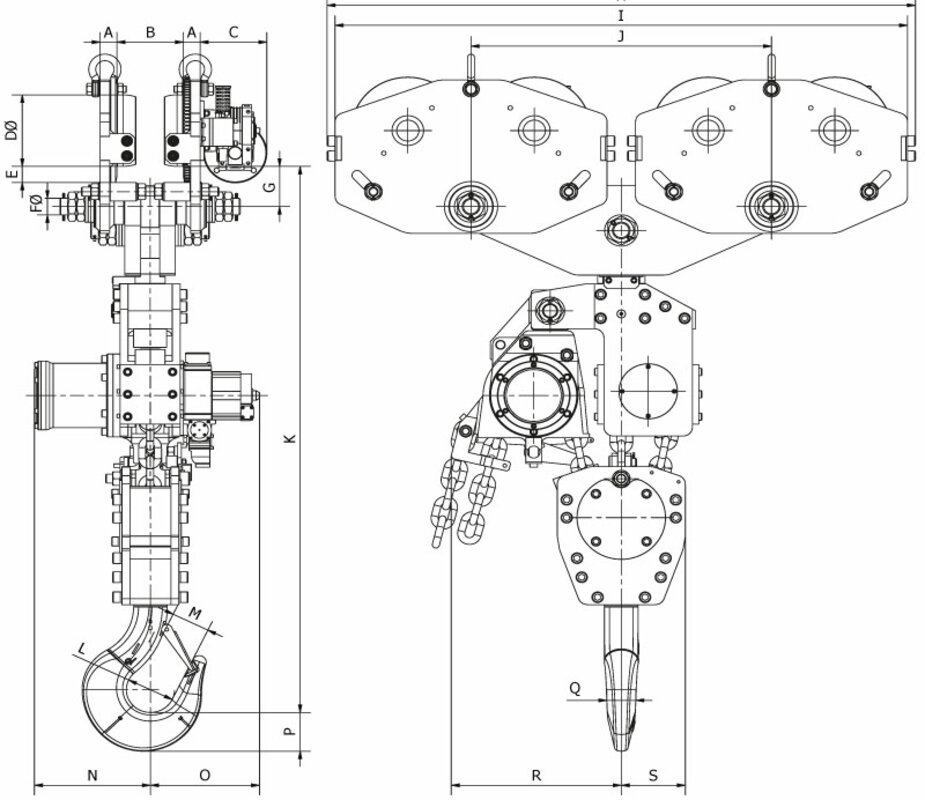

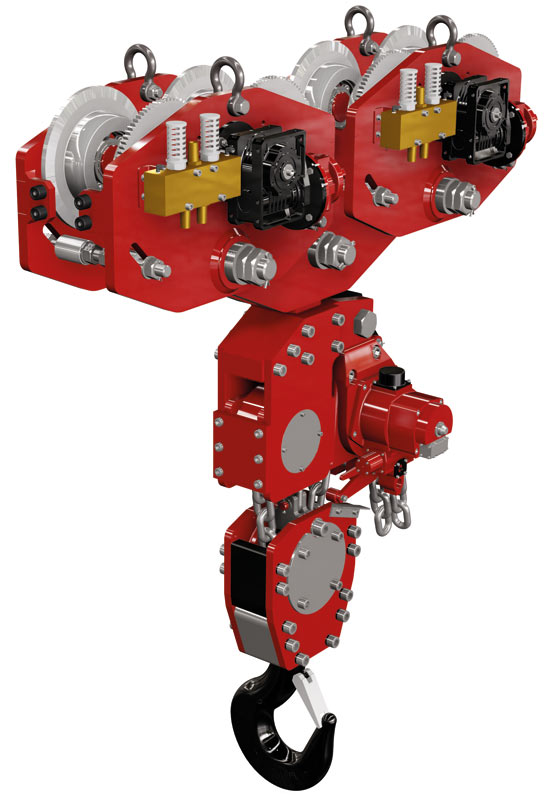

Air chain hoists & trolleys 25 t - 50 t load capacity

Compressed air chain hoist

TNC-25TW- AT25-2S

TNC-37,5TW- AT-37,5-2S

TNC-50TW/4- AT50-2S

Load capacity (t)

25

37,5

50

Lifting speed at full load (m/min)

0,6

0,4

0,3

Lifting speed without load (m/min)

1

0,6

0,45

Air consumption at full load (l/sec)

90

90

90

Number of chain strands

2

3

4

Air pressure (bar)

6

6

6

Air connection

1“ BSPT

1“ BSPT

1“ BSPT

Hose Ø (DIN 2999) (mm)

1“

1“

1“

Weight with standard stroke (kg)

910

1380

1900

Chain dimension (mm)

22 x 66

22 x 66

22 x 66

Weight per meter of additional stroke (kg/m)

21,8

32,7

43,6

Trolley

AT25-2S

AT-37,5-2S

AT50-2S

Flange: Width 1 (mm)

200 - 260

205 - 260

205 - 260

Flange: Width 2 (mm)

260 - 320

260 - 320

260 - 320

Standard temperature range (°C)

-10 - +50

-10 - +50

-10 - +50

Extended temperature range (°C)

-20 - +70

-20 - +70

-20 - +70

Travel speed (m/min)

6

4

4

Wheel material

Stahl

Stahl

Stahl

ATEX wheel material

Bronze

Bronze

Bronze

Minimum bending radius (m)

Nur gerade

Nur gerade

Nur gerade

Number of wheels

8

8

8

Number of driven wheels

4

4

4

Max. Air consumption (l/sec)

80

80

80

Inner hose Ø

1“

1“

1“

Dimensions of pneumatic chain hoists & trolleys 10 t - 25 t load capacity

druckluftkettenzug-laufkatze-25-50t-zg

Dimensions

TNC-25TW- AT25-2S

TNC-37,5TW- AT-37,5-2S

TNC-50TW/4- AT50-2S

A

40

53

53

B

TBC

TBC

TBC

C

215

211

211

D Ø

180

240

240

E

50

55

55

F Ø

60

80

80

G

115

135

135

H

1190

1860

1860

I

1140

1810

1810

J

600

950

950

K

1550

1805

2000

L Ø

125

125

140

M

80

90

100

N

345

366

366

O

365

345

345

P

103

118

132

Q

82

95

106

R

165

538

673

S

315

202,5

400

TCR-

L

M

N

O

P

Q

RØ

S

T

U

mm

TCR-6000-ULHR

530

645

355

347,5

107,5

37

500

43

62

49

TCR-12000-ULHR

530

645

400

367,5

130

52

540

58

84

67

TNC-20000-ULHR

780

950

500

550

165

64

915

78

110

80

01-druckluftkettenzug-laufkatze-3-15tN92oO8komqjNX

Ask for a non-binding offer

You have questions about our products or would like a quote for a specific product? Receive your personal offer quickly and directly.

Request price now

Crane service incl. crane repairs independent of manufacturer

Periodic inspections in accordance with DGUV

Consulting, development, design, statics

Service

Telephone support and
advice at:

+49 4102 7789-600

Transprotec GmbH
Carl-Backhaus-Str. 8
22926 Ahrensburg
Germany

Products

Service

Company

Certified



©2025 transprotec GmbH. All rights reserved. All prices are exclusive of VAT, unless otherwise stated.
