Power reel. Various power lengths and cross sections. Protection classes IP42 to IP65. Cable reels Power and data transmission for mobile consumers Orderly winding and ...
transprotec GmbH offers mobile energy supply systems and load supply systems for individual supplies as well as depot and fleet supply or loading areas. Both in private and commercial areas, our energy supply systems adapt to...
Electric wire rope winches Load capacities up to 37 t Flexible assembly options Durable and robust Pneumatic wire rope winches Load capacities up to 20 t For difficult environments Comprehensive range of...
Electric chain hoists Load capacities up to 25 t 230 V / 400 V Low-maintenance Air chain hoists Load capacities up to 100 t For continuous operation Duty cycle ...
Both spring balancers and balancers are almost indispensable for the ergonomic design of industrial workstations. transprotec GmbH offers spring balancers and balancers in standard or customized...
Options:
We offer periodic inspections (UVV) for your electric chain hoist.
We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600
Name | Load capacity (kg) | ISO | Chain (mm) | Lifting speed (m/min) | Chain box (size) | ||
ST. SP-Line |
|
|
|
| s (small) | m (medium) | l (large) |
125/1 - 8/2Ö | 125 | M7 | 5,2x15 | 8/2 | max. 8m | max. 10m | max. 25m |
250/1-8/2Ö | 250 | M6 | 5,2x15 | 8/2 | max. 8m | max. 10m | max. 25m |
500/2-4/1Ö | 500 | M6 | 5,2x15 | 4/1 | max. 8m | max. 10m | max. 25m |
500/1-8/2Ö | 500 | M5 | 7,2x21 | 8/2 | max. 8m | max. 18m | max. 24m |
1000/2-4/1Ö | 1000 | M5 | 7,2x21 | 4/1 | max. 8m | max.18m | max. 24m |
1000/1-6/1,5Ö | 1000 | M5 | 7,2x21 | 6/1,5 | max. 8m | max.18m | max. 24m |
1600/1-8/2Ö | 1600 | M5 | 9x27 | 8/2 | max. 10m | max. 18m | max. 30m |
2000/2-3/0,75Ö | 2000 | M5 | 7,2x21 | 3/0,75 | max. 8m | max. 18m | max. 24m |
2500/1-10/2,5Ö | 2500 | M5 | 11,3x31 | 10/2,5 | max. 6m | max. 12m | max. 20m |
3200/2-4/1Ö | 3200 | M5 | 9x27 | 4/1 | max. 10m | max. 18m | max. 30m |
5000/2-5/1,25Ö | 5000 | M5 | 11,3x31 | 5/1,25 | max. 6m | max. 12m | max. 20m |
Note: Intermediate loads possible on request - chain hoist is individually adjusted, marked and documented.

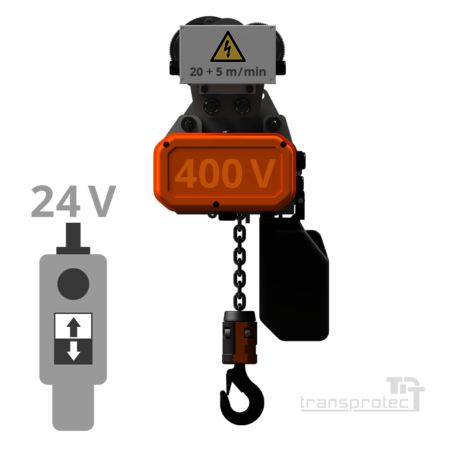

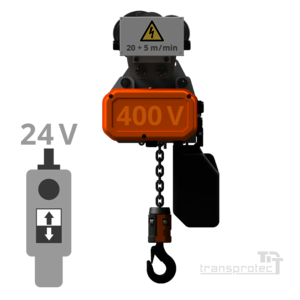

Load capacity: 6,300 kg
Suspension / trolley: Electric trolley
Voltage: 400 Volt
Control: Contactor control
You have questions about our products or would like a quote for a specific product? Receive your personal offer quickly and directly.
Crane service incl. crane repairs independent of manufacturer
Periodic inspections in accordance with DGUV
Consulting, development, design, statics
