Features:

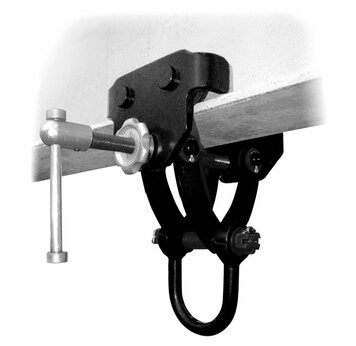

The beam clamp with integrated rolling trolley type BR is an ideal assembly aid when loads need to be easily attached to and moved along floor beams.
The rolling clamp is adjusted to the respective girder flange width by turning the threaded spindle. The counter lever is then turned to the side plate to secure it.
The girder clamp is made of insulated steel and a galvanized spindle. The rollers are made of steel and have ball bearings.
Typ BR- | 10 | 20 | 30 | 50 |
| Load capacity (t) | 1 | 2 | 3 | 5 |
| Yaw range (mm) | 64 | 76 | 76 | 100 |
| Gripping range (mm) | 203 | 203 | 203 | 305 |
| Curve radius (m) | 1,1 | 1,3 | 1,4 | 1,5 |

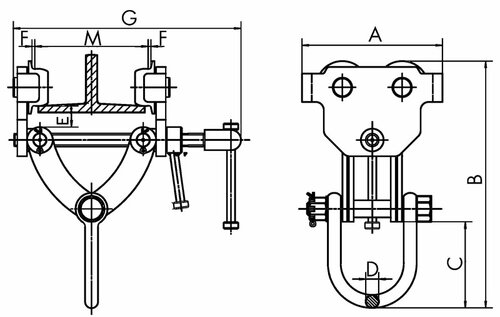

| A (mm) | 174 | 280 | 340 | 385 |
| B min-/max. (mm) | 263 - 324 | 339 - 387 | 374 - 438 | 450 - 528 |
| C (mm) | 105 | 111 | 127 | 135 |
| D (mm) | 324 | 387 | 438 | 528 |
| E (mm) | 340 | 340 | 345 | 465 |
| F (mm) | ≈ 3 | ≈ 3 | ≈ 3 | ≈ 3 |
| G (mm) | 174 | 174 | 280 | 345 |
| Weight (kg) | 7 | 20 | 32 | 53 |
