Transprotec  >  Chain hoists  >  Electric chain hoists

Electric Chain Hoist ST 125 kg bis 6.300 kg

Quality and Flexibility with Fast Delivery

Technical Features

  • Load Capacity: 125 kg - 5,000 kg
  • Hook Suspension
  • Power Supply: 3 Ph / 380 - 415 V - 50 Hz, 24 V AC
  • Protection Class: IP55
  • 42 V Contactor Control
  • High-End Industrial Limit Switch (Up/Down)
  • Equipped with Thermal Protection for Hoist Motor and Electronics
  • Standard Lifting Height: 3 m (up to 20 m available)
  • "MADE IN GERMANY"
  • Delivery Time: Approximately 15 working days

Like all electric chain hoists from transprotec, this electric chain hoist from the T-ECH model series also complies with the Machinery Directive 2006/42/EC and is supplied to you with a test certificate, CE declaration of conformity and operating instructions.

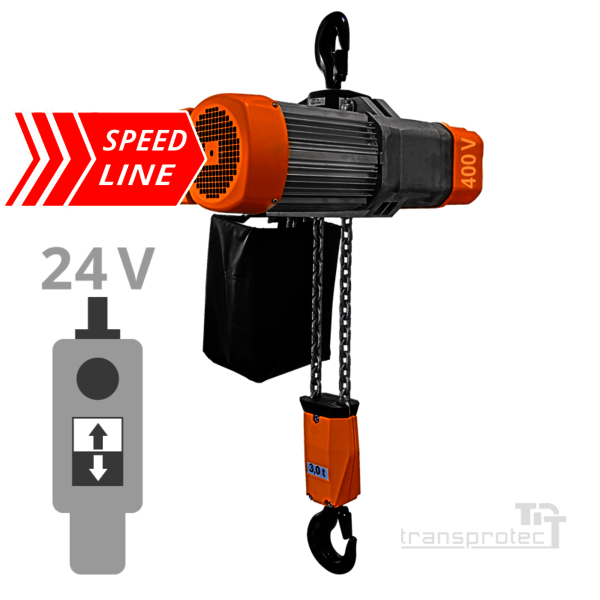

elektrokettenzug-400V-24V-haken1-speed
image-4505
image-4506

The ST-SPEEDLINE series electric chain hoist stands out with top-tier quality "Made in Germany" and a delivery time of just 15 working days. Even with this quick turnaround, the ST-SPEEDLINE provides a flexible and reliable solution for load capacities ranging from 125 kg to 5,000 kg and lifting heights up to 20 m.

Premium Features:

  • 24V AC Control: Ensures maximum safety and easy operation.
  • Operating Voltage: Designed for 3-phase power (380-415 V / 50 Hz).
  • Limit Switches: Upper and lower electric limit switches for precise lifting and lowering.
  • Pendant Control with Emergency Stop: Ergonomic control for enhanced safety.
  • Thermal Sensor: Protects the lifting motor during intensive operations.

Flexible Suspension Options:

Choose between single-hole suspension eye, non-rotatable hook suspension, or trolleys (manual or electric, with speeds of 5 + 20 m/min).

Additional Advantages:

  • Compact design with protection class IP55.
  • Standard 3 m lifting height and 1.5 m control cable included.
  • Control panel with quick-connect plug at no extra charge.

Choose the SPEEDLINE electric chain hoist and enjoy proven quality, customized features, and fast delivery—all from one source!

Note: Intermediate load capacities available upon request. Each chain hoist is individually adjusted, labeled, and documented to meet your specific requirements.

Electric chain hoist selection: 1-fall vs. 2-fall - Which chain hoist is right for you?

Some chain hoists are available in two versions with the same load capacity, differing by the number of chain strands:

Advantages at a glance:

  • 2-strand advantage: Smaller motor, reduced weight
  • 1-strand advantage: Larger motor, lower weight per meter of lift, faster
1-Strand Chain Hoist2-Strand Chain Hoist

Larger motor

Smaller motor

More own weight

Less own weight

Less weight per meter of lift, due to simpler chain guide

More weight per meter of lift, due to double chain guide

Larger chain

Smaller chain

More motor power

Less motor power

Faster

slower



Variants of the ST SPEEDLINE Electric Chain Hoist

All SPEEDLINE models come equipped with both main and precision lifting speeds.
With the ST SPEEDLINE in the 1-strand configuration of the 2.5t variant, you can achieve lifting speeds of up to 10 m/min.

Designation

ST. SP-Line-

Load capacity (kg)

Drive unit group
Classification

ISO

Chain size (mm)Number of strandsLifting speed
(m/min)

(main / fine)		Chain Container (Size)
s (small)m (medium)l (large)
125/1 - 8/2

125

M7

5,2 x 15

1

8 / 2

max. 8 m

max. 10 m

max. 25 m

250/1-8/2

250

M6

5,2 x 15

1

8 / 2

max. 8 m

max. 10 m

max. 25 m

500/2-4/1

500

M6

5,2 x 15

2

4 / 1

max. 8 m

max. 10 m

max. 25 m

500/1-8/2

500

M5

7,2 x 21

1

8 / 2

max. 8 m

max. 18 m

max. 24 m

1000/2-4/1

1000

M5

7,2 x 21

2

4 / 1

max. 8 m

max. 18 m

max. 24 m

1000/1-6/1,5

1000

M5

7,2 x 21

1

6 / 1,5

max. 8 m

max. 18 m

max. 24 m

1600/1-8/2

1600

M5

9 x 27

1

8 / 2

max. 10 m

max. 18 m

max. 30 m

2000/2-3/0,75

2000

M5

7,2 x 21

2

3 / 0,75

max. 8 m

max. 18 m

max. 24 m

2500/1-10/2,5

2500

M5

11,3 x 31

1

10 / 2,5

max. 6 m

max. 12 m

max. 20 m

3200/2-4/1

3200

M5

9 x 27

2

4 / 1

max. 10 m

max. 18 m

max. 30 m

5000/2-5/1,25

5000

M5

11,3 x 31

2

5 / 1,25

max. 6 m

max. 12 m

max. 20 m





Dimensions of the ST Electric Chain Hoist

elektrokettenzug-st-oese-und-haken-zeichnung
1-strand
elektrokettenzug-st-2-strang-oese-und-haken-zeichnung
2-strand
elektrokettenzug-st-oese-und-haken-zeichnung-seite
1-strand
elektrokettenzug-st-2-strang-oese-und-haken-zeichnung-seite
-strand2



TypeA
(mm)		B
(mm)		C
(mm)		G
(mm)		H
(mm)		I
(mm)		J
(mm)		K
(mm)		M
(mm)		N
(mm)		O
(mm)		P
(mm)		V
(mm)
125/1-8/2 suspension eye22119222036552515201912Ø 37401874
125/1-8/2 hook suspension221192220437597152019192422--74
250/1-8/2 suspension eye22119222036552515201912Ø 37 401874
250/1-8/2 hook suspension221192220437850152019192422--74
500/1-8/2 suspension eye27723227441357619222412Ø 47512481
500/1-8/2 hook suspension277232274500662192224243129--81
1000/2-4/1 suspension eye27723227451457624283112Ø 47512481
1000/2-4/1 hook suspension27723227460166224283124312--81
1000/1-6/1,5 suspension eye27723227441357619222412Ø 47512481
1000/1-6/1,5 hook suspension277232274500662192224243129--81
1600/1-8/2 suspension eye37628335951365924283118Ø 58 623473
1600/1-8/2 hook suspension376283359615761242831324030--73
2000/2-3/0,75 suspension eye27723227451457624283112Ø 51 512481
2000/2-3/0,75 hook suspension277232274601662242831243128--81
2500/1-10/2,5 suspension eye38029141061168732304022Ø 68 724567
2500/1-10/2,5 hook suspension380291410732805323040455842--67
3200/2-4/1 suspension eye37628335962065932304018Ø 58623473
3200/2-4/1 hook suspension376283359722761323040324030--73
5000/2-5/1,25 suspension eye38029141074068745425822Ø 68724567
5000/2-5/1,25 hook suspension380291410861805454258455842--67





elektrokettenzug-st-haken-und-oese
