TaluK aluminum portal crane 3.2 t

Height-adjustable up to 5 m, mobile and yet torsion and bending resistant

Features:

Load capacity up to 3,200 kg
Max. Beam length (clear width) up to 5,000 mm
Max. Suspension point: 4,900 mm
Height-adjustable

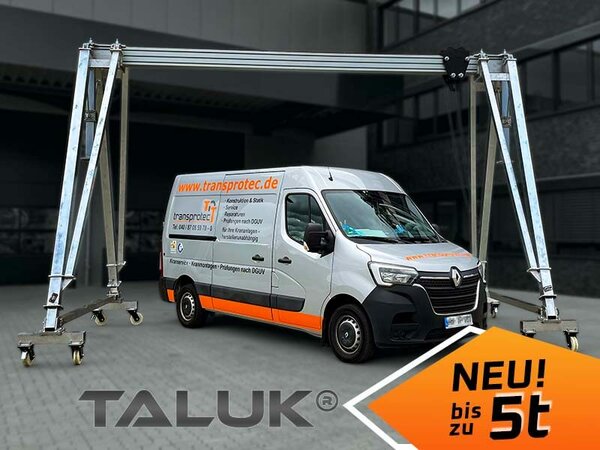

The TaluK® is the new mobile aluminum gantry crane from transprotec GmbH. Thanks to the (optionally available) patented superstructure solution, it is possible to use the gantry crane without additional equipment such as a forklift truck.

The crane is also characterized by the stepless adjustment of the two supports along the cantilever beam, in conjunction with the stepped height adjustment, the Taluk offers you the best possible flexibility.

Even the basic version of the TaluK® is equipped with a trolley and a reel trolley.

TaluK® - Zubehör

Construction aid

either: manual cable winch for manual operation
or: cable winch for cordless screwdriver operation
Cable pulley units with cable pulley
Attachment points for attaching the cable winch

Energy supply

Spiral and helical cable
On/Off switch with CEE appliance plug
attached junction box
VDE test in accordance with DIN VDE 0701-0702
Documentation & test report in accordance with DGUV-V 3

Transport frame

Pre-assembled chain hoist on the main carrier
Additional attachment and mounts on the main carrier
Forklift shoes for loading
4 swivel castors, 2 adjustable

Electric chain hoist

3 Ph / 400 V / 50 Hz
Load capacity: 3200 kg, 5000 kg
Protection class IP55, optional protection class IP 65
Hook suspension
Standard stroke: 3.0 m*
Control cable length: 1.5 m*
Chain box
Mains connection pluggable with industrial plug

Spur gear block and tackle

Load capacity: 3000 kg, 5000 kg
Standard lift: 3.0 m*
Standard operating length: 2.5 m*
Hand chain pulling force: approx. 33 daN
Safety brake
Galvanized screws, nuts, bolts and tempered load chain

* Can be customized according to customer specifications

Item no.		TaluK® 3.4	TaluK® 3.5	TaluK® 5.4	TaluK® 5.5
Carrying capacity	kg	3.200	3.200	5.000	5.000
Carrier length	mm	5.000	6.000	5.000	6.000
(A) clear beam width	mm	4.000	5.000	4.000	5.000
(A1) clear width	mm	4.155	5.155	4.155	5.155
(A2) Total width	mm	5.555	6.555	5.555	6.555
(B) Total width	mm	3.800 - 4.900	3.800 - 4.900	3.800 - 4.900	3.800 - 4.900
(B1) Max. attachment points	mm	4.00 - 5.100	4.000 - 5.100	4.00 - 5.100	4.000 - 5.100
(B2) Total height	mm	4.450 - 5.572	4.450 - 5.572	4.450 - 5.572	4.450 - 5.572
(C1) Length chassis	mm	2.720	2.720	2.720	2.720
(C2) Length of chassis	mm	3.225	3.225	3.225	3.225
Weight per side rack	kg	2 x 380	2 x 380	2 x 420	2 x 420
Crane runway weight with running rail	kg	215	240	215	240
Trolley weight	kg	95	95	95	95
