Cable reels for signal transmission

Plastic housing, for signal transmission

01_leitungsaufroller_11647
Request now!
  • Cable guide opening with rollers
  • Cable return stop with tooth lock, every 50 cm, easy to disengage if the cable is to be subject to continuous tensile force
  • Ambient temperature: -5°C to +40°C
  • Wall and ceiling mounting, swivel-mounted

Suitable for

  • Profibus
  • Interbus
  • CAN-BUS/Fieldbus
  • Devicenet
  • CC-Link
  • Ethernet
02_leitungsaufroller_11647
02_leitungsaufroller_11670584e9ba49be37
Type Number of wires / cross-section (mm²) Cable length (m) Cable diameter (mm) Line Protection class Item no.
11647-5x0,5 (5 x 0,5) C 12+1 7,5 TPE (CF10.05.05) IP 42 205362
11667-5x0,5 (5 x 0,5) C 20+2 7,5 TPE (CF10.05.05) IP 65 206226
11647-6x0,75 6 x 0,75 15+1 8 TPE (CF9.07.07) IP 42 205094
11667-6x0,75 6 x 0,75 20+2 8 TPE (CF9.07.07) IP 65 205095
11647-11x0,25 (11 x 0,25) C 8+1 9,5 TPE (CF10.02.12) IP 42 205361
11667-11x0,25 (11 x 0,25) C 18+2 9,5 TPE (CF10.02.12) IP 65 206227
11667-11x0,5 (11 x 0,5) C 10+2 11,5 TPE (CF10.05.12) IP 65 206228
11667-23x0,2,5 (23 x 0,25) C 6+2 13 TPE (CF10.02.24) IP 65 206229
11647-12x0,5 12 x 0,5 9+1 9,5 TPE (CF9.05.12) IP 42 203976
11667-12x0,5 12 x 0,5 20+2 9,5 TPE (CF9.05.12) IP 65 203977
AL41-71205 12 x 0,5 9+1 9,5 TPE (CF9.05.12) IP 42 205364
1164708-LAN (4 x (2 x 0,15)) C 11+1 7,5 PUR (CFBUS.PUR.045) IP 42 203975
1166708-LAN (4 x (2 x 0,15)) C 20+2 7,5 PUR (CFBUS.PUR.045) IP 65 203978

Properties of the control cable (example: CF10.05.05)

  • Rated voltage: 300/500 V (based on DIN VDE 0298-3)
  • Test voltage: 2000 V (based on DIN EN 50395)
  • For highest loads
  • -50 °C to +100 °C (based on DIN EN 60811-504)
  • Weight per m: 0.081 kg with outer diameter: 7.5 mm
  • Max. speed (unsupported): 10 m/s
  • sheath: TPE compound:
    Resistant to oil, coolants, particularly flexible at low temperatures, PVC-free, halogen and silicone-free
  • In accordance with Regulation (EC) No. 1907/2006 (REACH)
  • Lead-free In accordance with 2011/65/EU (RoHS-II)
  • CE, UL, UKCA, EAC certified

Properties of the slip ring assembly (Dataflux)

  • Permanent stable connection
  • 6, 12 or 24 contacts
  • maximum power 2 A, max. 48 V
  • Slip ring rings and current collector brushes in gold alloy
  • Dielectric rigidity 500 Vac à 60 Hz
  • Insulation resistance 1000 MΩ / 500 VDC
  • Noise index 100 mΩ at 6 VDC and 50 mA (à 5g/min)
  • up to 1 GHz

Properties of the Ethernet (LAN) line

  • Nominal voltage: 50 V
  • Test voltage: 500 V
  • For medium load
  • -40 °C to +70 °C (based on DIN EN 60811-504)
  • Weight per m: 0.066 kg with outer diameter: 7.5 mm
  • Max. speed (unsupported): 3 m/s
  • Sheath: PUR compound:
    notch-resistant, resistant to flames, oil, coolants, particularly flexible, PVC-free, halogen and silicone-free
  • In accordance with Regulation (EC) No. 1907/2006 (REACH)
  • Lead-free In accordance with 2011/65/EU (RoHS-II)
  • CE, UL, UKCA, EAC, DNV certified
  • CMX (Communications Cable)

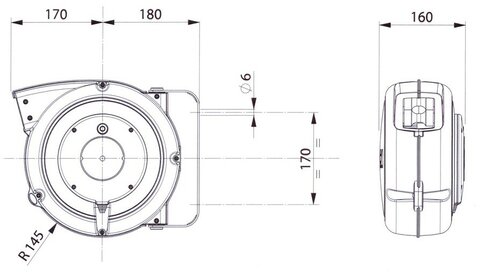

Technische Zeichnung Leitungsaufroller 11647 / 114708/CAT5 (IP 42)

1-02_leitungsaufroller_11647

Technische Zeichnung Leitungsaufroller 11667/IP 65 / 116708/CAT5

2-02_leitungsaufroller_11647
01_leitungsaufroller_11647
