Options:
We offer periodic inspections (UVV) for your electric chain hoist.
We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600
| Name | Load capacity (kg) | ISO | Chain (mm) | Lifting speed (m/min) | Chain box (Größe) | ||
| ST. L-Line | s (small) | m (medium) | l (large) | ||||
| 125/1 - 8/2Ö | 125 | M7 | 5,2x15 | 8/2 | max. 8m | max. 10m | max. 25m |
| 250/1-8/2Ö | 250 | M6 | 5,2x15 | 8/2 | max. 8m | max. 10m | max. 25m |
| 500/2-4/1Ö | 500 | M6 | 5,2x15 | 4/1 | max. 8m | max. 10m | max. 25m |
| 500/1-8/2Ö | 500 | M5 | 7,2x21 | 8/2 | max. 8m | max. 18m | max. 24m |
| 1000/2-4/1Ö | 1000 | M5 | 7,2x21 | 4/1 | max. 8m | max.18m | max. 24m |
| 1000/1-6/1,5Ö | 1000 | M5 | 7,2x21 | 6/1,5 | max. 8m | max.18m | max. 24m |
| 1600/1-8/2Ö | 1600 | M5 | 9x27 | 8/2 | max. 10m | max. 18m | max. 30m |
| 2000/2-3/0,75Ö | 2000 | M5 | 7,2x21 | 3/0,75 | max. 8m | max. 18m | max. 24m |
| 2500/1-10/2,5Ö | 2500 | M5 | 11,3x31 | 10/2,5 | max. 6m | max. 12m | max. 20m |
| 3200/2-4/1Ö | 3200 | M5 | 9x27 | 4/1 | max. 10m | max. 18m | max. 30m |
| 5000/2-5/1,25Ö | 5000 | M5 | 11,3x31 | 5/1,25 | max. 6m | max. 12m | max. 20m |
Note: Intermediate loads possible on request - chain hoist is individually adjusted, labeled and documented

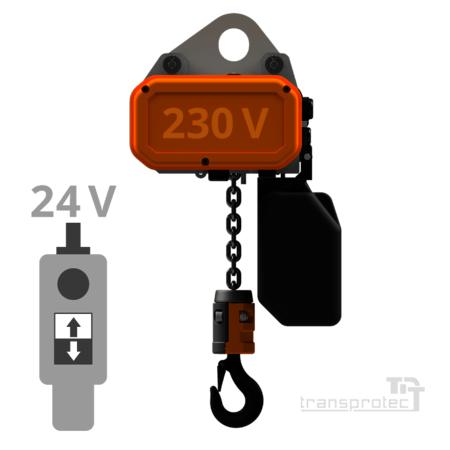

Load capacity: 2,000 k
Suspension / trolley: eyelet suspension
Voltage: 230 Vol
Control: Contactor control
