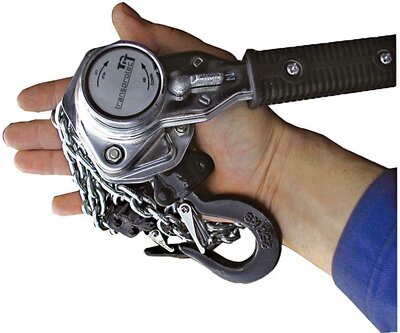

Thanks to its minimal dimensions and low weight, the “Minichamp” is the ideal lever hoist for all standard assembly work.
The LHW 25 is suitable for clamping, lifting and pulling in any direction and in any position. The standard scope of delivery includes a 1.5 m load chain in accordance with DIN EN 818-7-T. The load is held securely in any position by means of the load pressure brake.
A release lever enables the chain to be pulled through quickly when unloaded. The top and bottom hooks are equipped with safety flaps.
Type Minichamp LHW | 25 | 50 |
| Load capacity (kg) | 250 | 500 |
| Chain size (mm) | 4 x 12 | 5 x 15 |
| Standard stroke (m) | 1,5 | 1,5 |
| Required leverage (daN) | 30 | 24 |
| A (Min. Bauhöhe) (mm) | 235 | 300 |
| B (mm) | 60 | 118 |
| C (mm) | 155 | 253 |
| D (mm) | 31 | 31 |
| E (mm) | 19 | 24 |
| F (mm) | 91 | 143 |
| G (mm) | 70 | 86 |
| Weight with standard stroke (kg) | 2,8 | 5,7 |
| Weight per meter extra stroke (kg) | 0,4 | 0,6 |
