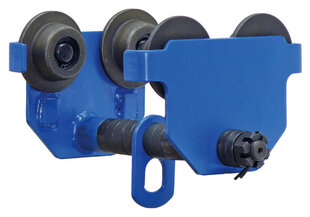

Manual trolleys are moved by pushing against the load. Reel trolleys are moved to the right or left on a carrier by pulling on an endless hand chain. The load to be moved is distributed to the four wheels by self-adjusting oscillation around the pin axis. The hand chains are supplied in a galvanized version.
Features:

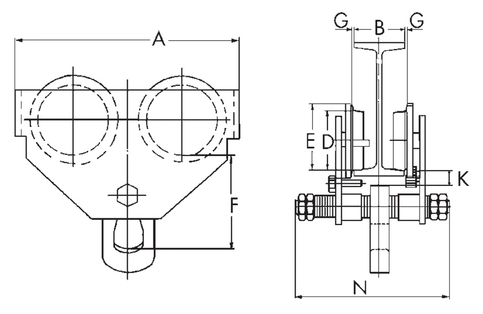

| Handrail trolley PTM | 0,5 | 1 | 2 | 3 | 5 | 10 |
| Load capacity (t) | 0,5 | 1 | 2 | 3 | 5 | 10 |
| Flange width B min.-max. (mm) | 50 - 203 | 64 - 203 | 88 - 203 | 100 - 203 | 114 - 203 | 124 - 203 |
| Min. curve radius (m) | 0,8 | 0,9 | 1 | 1,2 | 1,3 | 1,7 |
| A (mm) | 199 | 246 | 276 | 332 | 377 | 389 |
| D (mm) | 55 | 68 | 80 | 100 | 110 | 136 |
| E (mm) | 67 | 81,5 | 94 | 115,5 | 127 | 156 |
| F (mm) | 105 | 125 | 150 | 171 | 196 | 285 |
| G (mm) | 2 | 2 | 2 | 3 | 3 | 3 |
| K (mm) | 30 | 38 | 38 | 40 | 42 | 22 |
| N (mm) | 295 | 311 | 327 | 343 | 355 | 403 |
| O (mm) | 35 | 52 | 57 | 57 | 88 | 115 |
| P (mm) | 22 | 30 | 36 | 36 | 50 | 86 |
| Q (mm) | 16 | 15 | 25 | 17 | 37 | 48 |
| R (mm) | 50 | 70 | 90 | 70 | 120 | - |
| Weight (kg) | 7 | 10,5 | 17,5 | 27 | 41 | 48 |
| Reel chain trolley GTM | 0,5 | 1 | 2 | 3 | 5 | 10 | 20 |
| Load capacity (t) | 0,5 | 1 | 2 | 3 | 5 | 10 | 20 |
| Flange width B min.-max. (mm) | 64 - 203 | 64 - 203 | 88 - 203 | 100 - 203 | 114 - 203 | 124 - 203 | 136 - 203 |
| Min. curve radius min.(m) | 0,8 | 0,9 | 1 | 1,2 | 1,3 | 1,7 | 2,8 |
| Length of operating chain (m) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| A (mm) | 199 | 246 | 276 | 332 | 377 | 389 | 574 |
| D (mm) | 55 | 68 | 80 | 100 | 110 | 136 | 175 |
| E (mm) | 67 | 81,5 | 94 | 115,5 | 127 | 156 | 200 |
| F (mm) | 105 | 125 | 150 | 171 | 196 | 285 | 315 |
| G (mm) | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| K (mm) | 30 | 38 | 38 | 40 | 42 | 22 | 30 |
| N1 (mm) | 326 | 338 | 349 | 362 | 374 | 480 | 537 |
| P (mm) | 22 | 30 | 36 | 36 | 50 | 86 | 106 |
| Q (mm) | 16 | 15 | 25 | 17 | 37 | 48 | 57 |
| R (mm) | 50 | 70 | 90 | 70 | 120 | - | - |
| Weight (kg) | 14,5 | 14,5 | 21,5 | 31 | 46 | 95 | 244 |
