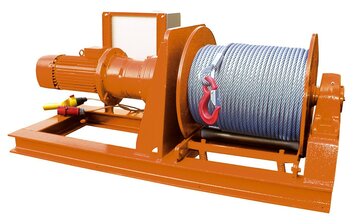

Electric wire rope winch SB-E

Lifting force up to 60 t | Voltage: 400 V

The electric wire rope winches in the SB-E series have a modular design. This electric wire rope winch can be designed both as a pulling winch and as a lifting winch. The rope drums of the SB-E winches are supported by a pedestal bearing and their drive shaft in the flange-mounted planetary gearbox. Where space is limited, the SB-E cable winches are available with an angled drive. Thanks to the modular basic design, the electric wire rope winches in the SB-E series can be manufactured with different flange and drum sizes, different gear stages and motor types to suit the respective application.

Equipment:

Planetary gearbox

Steel drum with rope attachment point on the drum flange
Three-phase brake motor with aluminum housing for 3-Ph / 400 Volt / 50Hz

Options - Control system:

Contactor control with push buttons and emergency stop in protection class IP 55
Pendant control with emergency stop in
protection class IP 65
Frequency control for infinitely variable speed control
Overload protection (required by CE directive for loads of 1,000 kg or more)
Overheating protection for motor
Radio remote control
Slack rope switch
Spindle limit switch

Options:

IP 56 TENV motor in marine version
Belt brake, manual or automatic
Steel protective motor housing
Slip ring assembly for energy or signal transmission
Explosion-proof motors
Grooved drum
Other winding speeds
Overrunning clutch for drum
Drum protection cover
Rope pressure roller
Special drum sizes
Emergency hand crank
Angular gear
capstan head

Type SB-E	Max. Lifting force		Recommended	Speed		Rope take-up speed		Motor power	Prices excl. VAT, shipping costs excl. accessories
	1. Rope layer kg	5. Rope layer kg	Rope Ø mm	1. Pitch m/min	5. Pitch m/min	1. Pitch m	5. Pitch m	kW
300-E	1250	875	9	8,5	12,5	24	155	2,2	from 6.800 €
301-E	2000	1400	11	8,5	12,5	24	155	3	from 7.500 €
304-E	3000	2100	14	8,5	12,5	24	155	5,5	from 9.360 €
305-E	4000	2800	16	8	11,5	24	155	5,5	from 10.330 €
306-E	5500	3800	19	8	11,5	24	155	7,5	from 12.415 €
307-E	7000	4900	22	8	11,5	24	155	11	from 17.199 €
309-E	9000	6300	24	10	14	24	155	15	from 22.888 €
310-E	12000	8400	28	8	11,5	24	155	18,5	from 29.065 €
311-E	15000	10400	32	7,5	11	23	154	22	from 33.509 €
313-E	18000	12400	34	6	9	22	153	22	from 40.867 €
314-E	23000	16000	38	6	9	22	153	30	from 49.640 €
315-E	30000	20400	44	6	9	20	145	30	from 61.475 €
316-E	37000	24500	48	6	9	18	137	45	from 68.299 €

Show product data sheet

Dimensions electric wire rope winch SB-E

Show questionnaire

Dimensions (mm)
Dimensions (mm)	300	301	304	305	306	307	309	310	311	313	315	316
Weight (kg)	250	250	400	400	510	790	1100	1420	1740	2320	3400	2900
D1	152	191	241	273	324	394	419	495	546	572	711	711
D2	325	375	430	490	580	680	730	860	960	1020	1350	1400
L1	500	500	500	500	500	500	500	500	500	500	500	500
L2	135	155	155	155	165	200	230	235	259	260	299	299
L3 (E)	1450	1450	1600	1650	1800	1950	2000	2100	2150	2150	2600	2650
L3 (H)	-	-	1350	1350	1450	1550	1550	1600	1600	1700	2050	2100
L3 (L)	1450	1450	1650	1800	1850	1900	1900	1950	1950	1950	-	-
L4	385	405	405	405	415	450	480	485	509	510	549	549
L6	80	80	80	80	80	100	110	120	120	120	140	140
L7	540	540	550	550	560	560	560	590	590	590	590	590
L8	80	80	80	80	80	100	110	120	120	120	140	140
L9	20	20	20	20	20	25	30	40	40	40	40	40
H1	100	100	100	100	100	120	140	160	160	180	200	200
H2	215	215	260	260	310	360	435	460	510	585	685	710
H3	520	520	610	610	710	830	1000	1070	1170	1340	1560	1610
W1	500	500	600	600	700	800	1000	1100	1150	1350	1550	1600
W2	460	460	560	560	660	750	940	1040	1090	1280	1470	1520
HEB	100	100	100	100	100	120	140	160	160	180	200	200
Hole Ø	14	14	14	14	18	20	22	26	30	32	36	36
